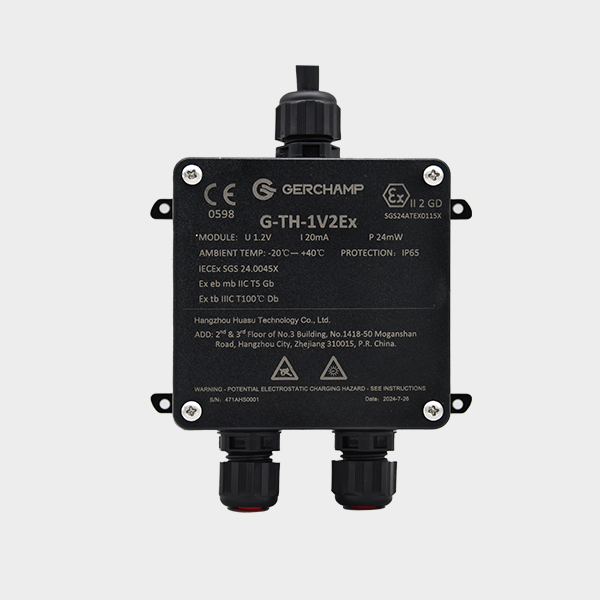

G-TH-Ex Explosion-proof single battery monitoring module is mainly applied in the petroleum and petrochemical industries. Each module for a cell supports the monitoring of the cell voltage, internal resistance and temperature. Easy for installation and maintenance, the module meets the requirements of the relevant explosion-proof standards of IECEx/ATEx, and is used in the environment of category IIC.

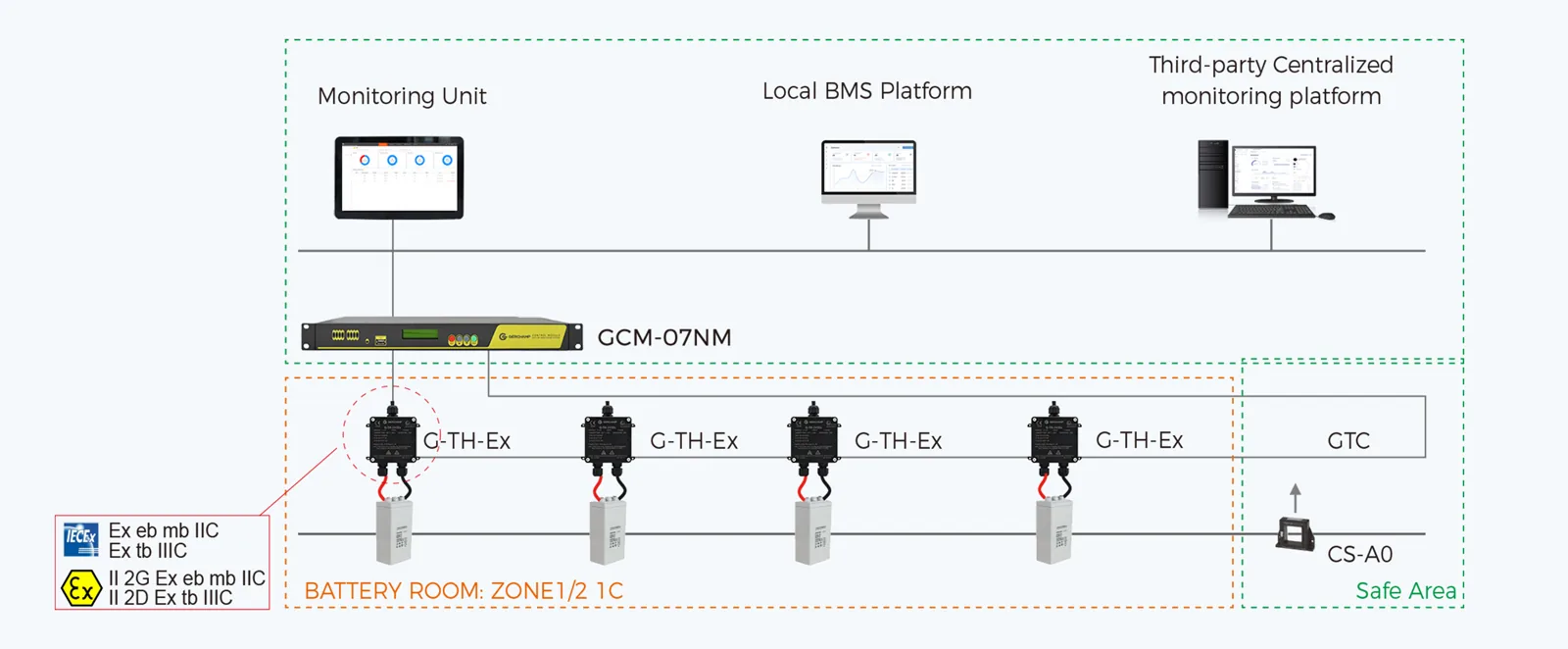

Each battery is equipped with a G-TH-Ex single monitoring module, which monitors the cell voltage, internal resistance and temperature. Based on the relevant standards of IECEx/ATEx, this module is used in the environment of category IIC.
G‐TH-Ex module is powered by the battery monitored. Applied advanced power management and improved power supply circuit. Adopt low-consumption design, with the minimum consumption of 15mW without affecting the cells being monitored, the effect on the battery is negligible.
AI intelligent data analysis detects low effective battery, monitors the safe operating environment, outputs analysis report clear and easy to understand.
Refer to the advantages of various algorithms such as Kalman filter, multi-dimensional, fuzzy network neural, and open circuit voltage method. Provide high-accuracy SOC estimation, improving the SOC accuracy of traditional BMS from ±20% to ±5%.
The G-TH-Ex Explosion-proof Battery Monitoring system optimizes the performance, safety, and longevity of lead-acid batteries. Key functions include:
Explosion-proof: Based on the relevant standards of IECEx/ATEx, provides explosion-proof monitoring of batteries in the environment of category IIC.
Charge/Discharge Current Management: Regulates current for safe operation.
String Voltage Monitoring: Monitors entire battery string voltage
Float Current Management: Maintains battery health during standby.
SOC/SOH Estimation: Provides accurate State of Charge and State of Health metrics.
Cell Voltage Monitoring: Ensures balanced cell performance.
Cell Temperature Monitoring: Prevents cell overheating.
Ambient Temperature Monitoring: Adjusts operation based on environment.
Cell Internal Resistance Measurement: Detects issues and optimizes performance.
| Working Environment | |
| Working environment | -20～+40℃ (0~2000m altitude) Relative |
| humidity | 5～95% |
| Atmospheric pressure | 80～110kPa |
| Measurement | |||
| Content | Range | Accuracy | Resolution |
| Cell voltage | 1.2V/2V/2.4V 4.8V/6V/12V Capacity<3000AH | ±0.1% | 0.001V |
| Cell internal resistance | 50~65535μΩ | ±2% | 1μΩ |
| Negative terminal temperature | -5~+99.9℃ | ±1°C | 0.1°C |
